Manufacturer of 94mm forged steel balls :Jinan Zhongwei
Export to : Australia
GENERAL DESCRIPTION
Jinan Zhongwei has the capacity to manufacture premium quality forged steel balls
of all sizes ranging from 22 mm to 160 mm ( 7/8” to 6 ¼” approx. ) .
Jinan Zhongwei Grinding Media Plant located in Zhangqiu , Jinan City,Shandong Province , China

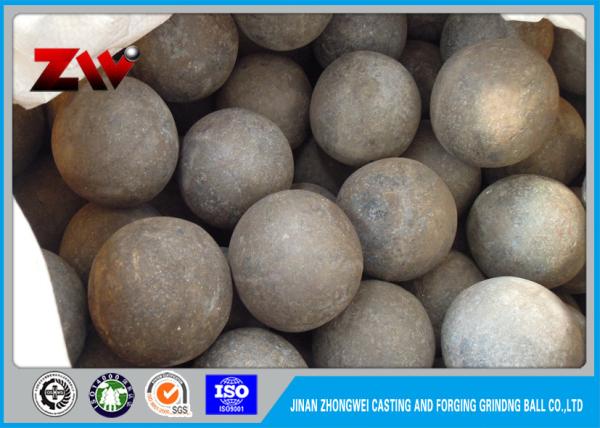

Forged steel Balls are made from high carbon steel bars with the proper alloying elements.
Bars are heated to forging temperatures and formed into nearly perfect spheres.
Then, balls are heat-treated to provide the necessary wear and impact resistance properties.
Weight of Forged Grinding Ball
| Norminal Diameter | Diametrical Tolerance(mm) | Approx Weight of Single Ball(kg) | Average Number of One Ton |
| 25mm/1'' | +1.5,-0.5 | 0.064 | 15625 |
| 30mm/1.25'' | +1.5,-0.5 | 0.11 | 9090 |
| 40mm/1.5'' | +2.0,-1.0 | 0.26 | 3846 |
| 50mm/2'' | +2.0,-1.0 | 0.51 | 1961 |
| 60mm/2.5'' | +3.0,-2.0 | 0.89 | 1124 |
| 70mm/2.75'' | +3.0,-2.0 | 1.4 | 714 |
| 80mm/3.25'' | +3.0,-2.0 | 2.1 | 476 |
| 90mm/3.5'' | +3.0,-2.0 | 3 | 333 |
| 100mm/4'' | +4.0,-3.0 | 4.1 | 244 |
| 110mm/4.5'' | +4.0,-3.0 | 5.47 | 283 |
| 120mm/4.75 | +4.0,-3.0 | 7.1 | 141 |
| 130mm/5'' | +4.0,-3.0 | 9.02 | 111 |
Type of forged steel balls
Testing Method and Inspection Rules
1. Impact Test
2. Rockwell Hardness Test Specimen Preparation
3. Chemical Composition Inspection
4. Surface Hardness Inspection
5. Internal Quality Inspection
Port of loading:Qingdao Port,China
Delivery time : Normally 2-3 weeks after down payment received.
Partial shippment allowed,
- Payment terms : T/T (30% DP,balance against copy of B/L.; L/C
- Samples : Free samples are provided for test before trial order
- MOQ : 1 Ton
Forged Steel Balls Package :
For Container Bag, Net weight 1000Kgs ,Gross Weight 1002KGS ,Measurement 0.4CBM
For Steel Drums ,Net weight 850-950Kgs ,Gross Weight 865-965KGS ,Measurement 0.3CBM
We jinan zhongwei will continue to promote the benefits and applications of our grinding media to an
ever-widening industrial marketplace.
We are ready to contribute our share in advancing mutual benefit and win-win cooperation.
Let’s build a bright future together!
